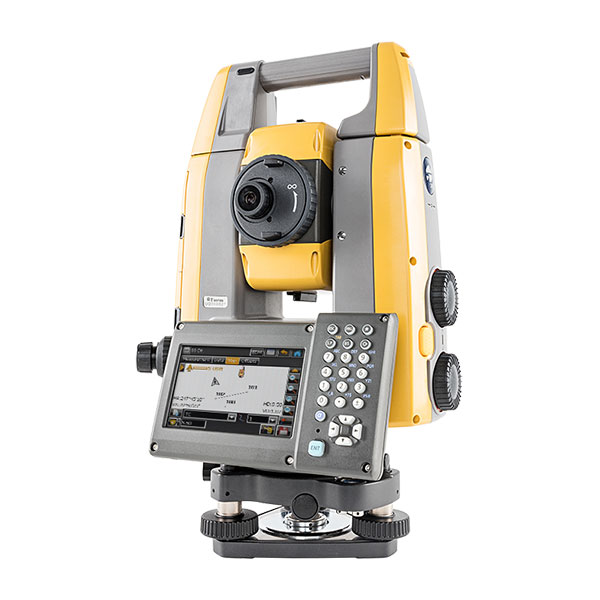

Topcon Robotic Total Station GT-1200/600

❮
❯

SMOOTH DRIVE CONTROL

New motor control technologies for auto tracking

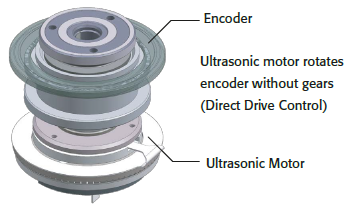

Newly adapted technologies to control Ultrasonic motor “Smooth Drive ControlTM”
Robotic total station can quickly increase or decrease the motor’s speed. High speed rotation is a USM feature which reduces the rotation time to turn the units to the designated angle, face 1 / face 2 rotation.

Built-in “Smooth Drive Control™” technology smooths motion rotation under any conditions. “Smooth Drive Control™” technology enhances the durability of the ultrasonic motor. The durability has been confirmed through quality test.

Features of Ultrasonic Motor (USM)

• Fastest rotation speed 180 degrees/sec
• Small size because of the gearless system
• Fast response

The world’s Smallest and Lightest

This Robotic Total Station is the world’s smallest and lightest. Moreover, it is the same weight as a manual total station. So that it is easier to carry and set up at your projects even in mountains. Mobility performance is better than before at difficult terrain areas.

10Hz High rate data communication

Robotic Total Station is able to communicate the data 10Hz speed for survey work purpose. So it enables us to stake out faster than conventional way thanks to high rate data communication.

Straightforward and streamlined field work

Excellent basic performance

Auto-aiming

Precise measurements can be done by a rough aim and a light touch on the “Trigger button” without focusing the lens or doing other operations. Auto aiming provides consistent accuracy and speed regardless of the operator’s skill levels and other conditions.

Auto-tracking

Enhanced prism-tracking enables you to operate under virtually any Conditions, even when you lose the line-of-sight because of obstructions or strong sunlight. Even if a prism lock is lost, you can easily turn GT, reacquire the prism with RC-5A and go back to work smoothly.

Trigger key

Just rough aim towards the target prism and lightly press “Trigger button” to precisely aim and measure automatically with ease.

Large display

Large and high-resolution WVGA display provides clear visibility in sunlight. Moreover, the large icons improve operability.

Maximizing measurements and field performance

Hybrid Positioning Survey System (Upgradable)

Hybrid Switch from Robotic Total Station to GNSS receivers with single-button tap !

Survey Everywhere

If line of sight is not there, we use GNSS. If no open sky, we use the robotic total station.

Hybrid Search

Turns robotic total station toward the prism location based on GNSS position information

Auto-tracking (Repeat)

Enhanced prism-tracking enables you to operate under virtually any Conditions, even when you lose the line-of-sight because of obstructions or strong sunlight. Even if a prism lock is lost, you can easily turn GT, reacquire the prism with RC-5A and go back to work smoothly.

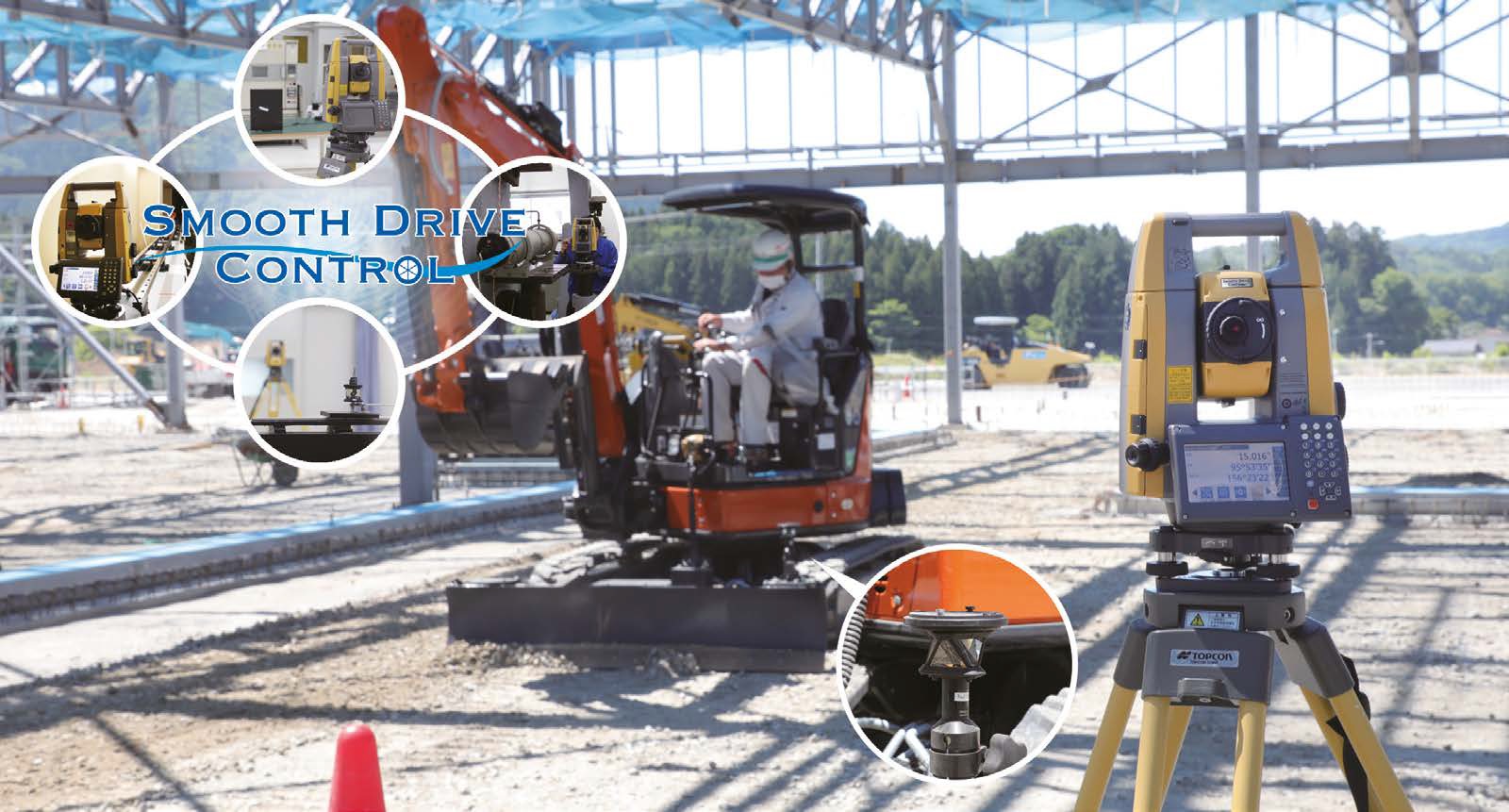

As a high precision sensor to perform accurate Machine Control System LPS 3D-MC (Upgradable)

Spreading to precise construction execution, Robotic Total Station is able to control heavy machineries in 3D ! There is no need of open sky ! LPS Dozer, LPS Excavators, LPS Grader, LPS Compaction roller, LPS Paver

Trigger key (Repeat)

Just rough aim towards the target prism and lightly press “Trigger button” to precisely aim and measure automatically with ease.

Dustproof and Waterproof : IP65 design

Provides protection from dust and driving rain as well as other inclement weather conditions. Operates in temperatures from -20 to +50ºC.

Large display (Repeat)

Large and high-resolution WVGA display provides clear visibility in sunlight. Moreover, the large icons improve operability.

Bright, Sharp Guide Light

The Guide Light allows you to instantly recognize the line between the instrument and the stakeout line, with clearly visible Green and Red lights
