From Sight to Insight in a Blink
.jpg)

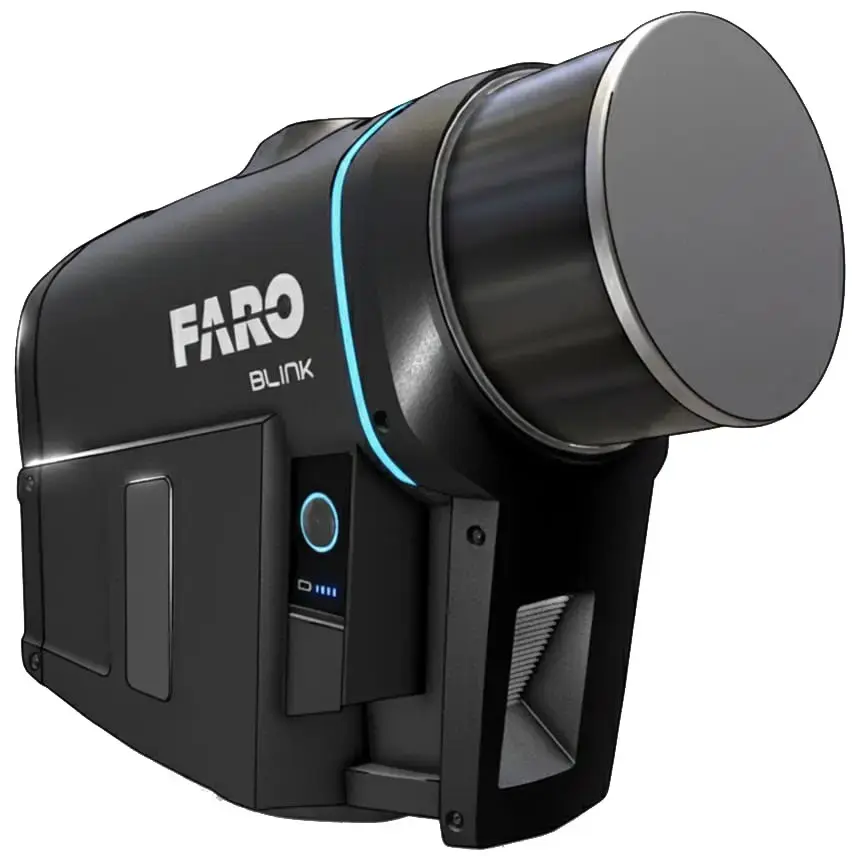

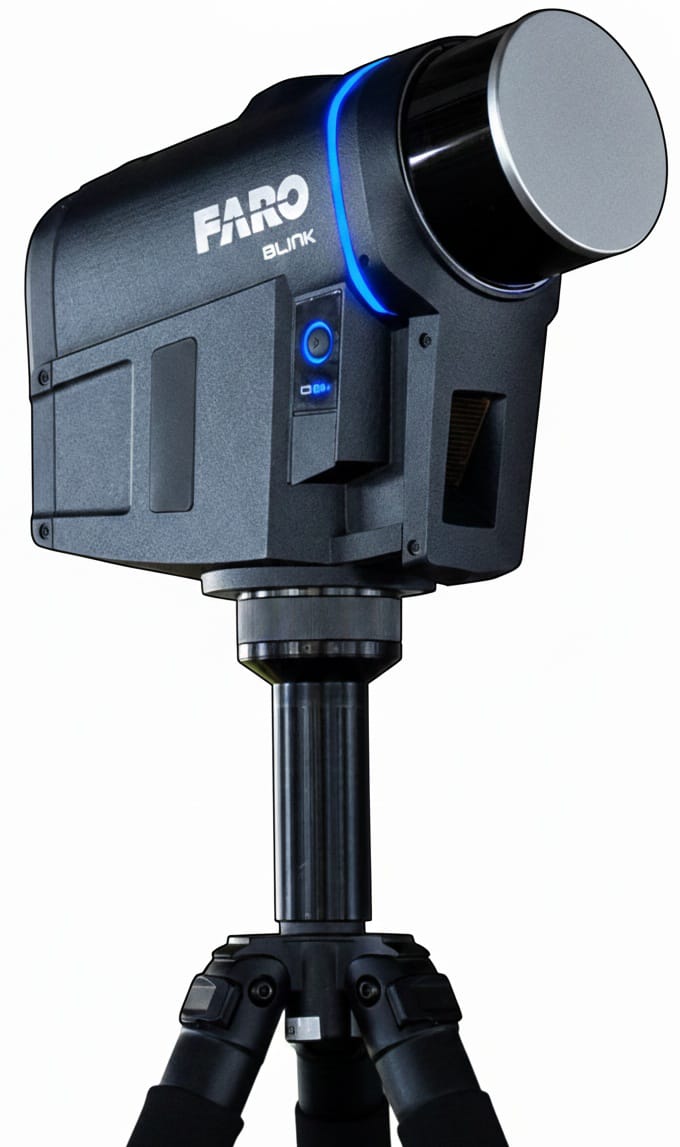

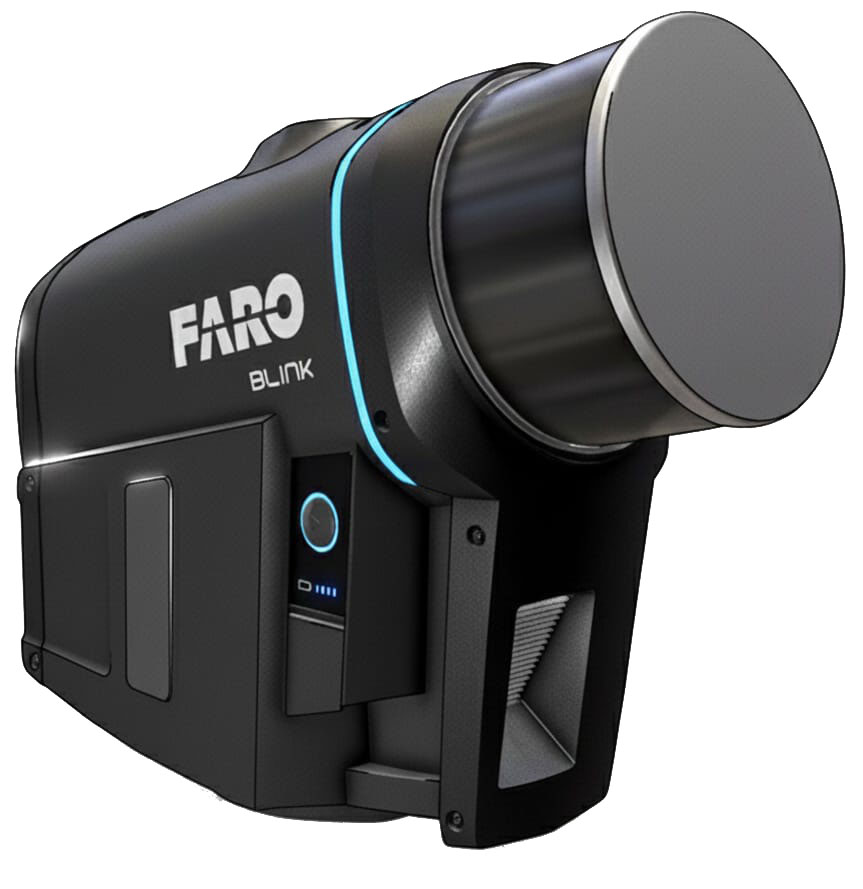

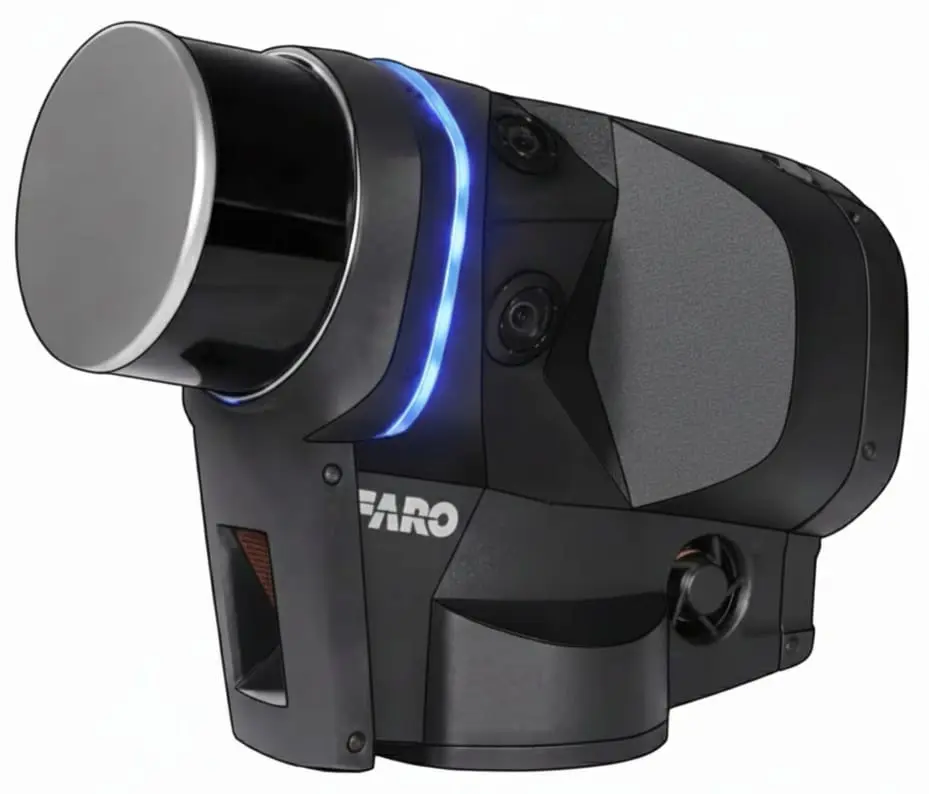

Introducing Blink

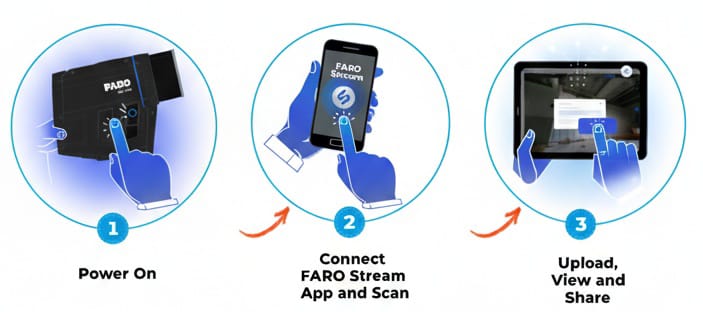

In a Blink…
Progress Captured Easily
- Smooth, straightforward experience from start to finish.
- Simple to use, requiring minimal onboarding.
Data Becomes Insights
- Intuitive workflows eliminate complexity.
- Automated point cloud registration and floor plan creation.
- Fast, efficient progress tracking instantly.
Decisions Are Made
- Stunning visual quality with precise point cloud accuracy.
- Dependable data for effective decision-making.
- Collaborate remotely on digital job sites.
Specifications
General
- Manufacturer Warranty
- 1 year
- Accessories
- The Blink Mobility Kit provides a tripod, a QuickMount, a backpack and a QuadLock phone mount kit, specifically designed to deliver best mobility and efficiency.
Performance
- Data Acquisition
- HDR color scans in less than 30 s per position
- 3D Point Accuracy
- 4 mm @ 10 m
- Fully Automatic Leveling
- 0.3 mm over 1 m
Imaging
- Panoramic Camera System
- Dual on-axis HDR camera system with 25 MPx resolution
- Raw Image Resolution
- Provides 125 MPx raw image resolution
Scanning
- Laser Class
- Laser Class 1
- Field of View
- 300° vertical / 360° horizontal
- Range
- 0.5 m – 80 m
- 3D Points Per Scan
- Up to 50 MPts
Operation
- Stand-Alone Operation
- One-button scan operation
- Real Time Position Tracking
- Always know where to capture the next scan
- Mobile Devices
- FARO Stream App for iOS and Android. Guides the user through a successful on-site workflow and provides direct sync to cloud processing with FARO Sphere® XG.
Data Processing
- Internal Memory
- Up to 1,500 scan positions
- Data Transfer
- WiFi (2.4 GHz and 5 GHz)
- Data Storage
- USB-C to store data on a thumb drive (high speed thumb drive included)
- Desktop Software
- FARO SCENE for advanced processing and registration needs
- Cloud Software
- Fully automated with FARO Sphere XG
Power
- Power Supply
- 14.4 V (internal battery)
- Capacity
- Typical Battery Operation Time: About 3 hours (3 batteries included for a full day of data capture)
- Battery Charge Time
- < 3 h
Physical
- Dimensions
- 280 mm x 115 mm x 225 mm
- Weight
- 3.7 kg (including battery)
Environmental
- Operating Temperature
- +5°C to +40°C
- Storage Temperature
- -10°C to +60°C
- Dust / Humidity
- IP 54 / non-condensing
